Stack & Queue

1. Introduction
2. Stack Overview
   • Key Features
   • Applications
3. Queue Overview
   • Key Features
   • Applications
   • Types of Queues
4. Implementing Stack
   • With Array
   • With Linked List
5. Implementing Queue
   • With Array
   • With Linked List
6. Implementing Queue with Two Stacks
7. Implement Stack using just one Queue
8. Summary

Introduction

Stack is a linear data structure that follows Last In, First Out(LIFO) Principle, the last element inserted is the first to be popped out. It means both insertion and deletion operations happen at one end only.While Queue follows the principle of First In, First out (FIFO), where the first element added to the queue is the first one to be removed.

• Stack: Follows Last-In-First-Out (LIFO).
• Queue: Follows First-In-First-Out (FIFO).

Stack Overview

Key Features of Stack

• Top: The only accessible end for insertions/deletions.
• Operations:
  • push() to insert an element into the stack
  • pop() to remove an element from the stack
  • top() Returns the top element of the stack.
  • isEmpty() returns true if stack is empty else false.
  • isFull() returns true if the stack is full else false.

Applications of Stack

• Function call management (call stack).
• Undo/Redo functionality.
• Syntax parsing (e.g., matching parentheses).

Queue Overview

Key Features of Queue

• Front/Back: Elements enter at the back and exit from the front.
• Operations:
  • Enqueue: Adds an element to the end (rear) of the queue. If the queue is full, an overflow error occurs.
  • Dequeue: Removes the element from the front of the queue. If the queue is empty, an underflow error occurs.
  • Peek/Front: Returns the element at the front without removing it.
  • Size: Returns the number of elements in the queue.
  • isEmpty: Returns true if the queue is empty, otherwise false.
  • isFull: Returns true if the queue is full, otherwise false.

Applications of Queue

• Task scheduling (e.g., printers managing print jobs).
• Breadth-First Search (BFS) in graph algorithms.
• Buffering data streams.

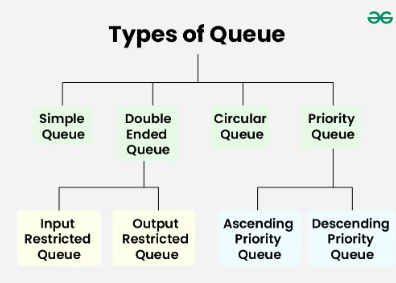

Types of Queues

1. Simple Queue: Simple Queue simply follows FIFO Structure. We can only insert the element at the back and remove the element from the front of the queue. A simple queue is efficiently implemented either using a linked list or a circular array.
2. Double-Ended Queue (Deque): In a double-ended queue the insertion and deletion operations, both can be performed from both ends. They are of two types:
   Input Restricted Queue: This is a simple queue. In this type of queue, the input can be taken from only one end but deletion can be done from any of the ends.
   Output Restricted Queue: This is also a simple queue. In this type of queue, the input can be taken from both ends but deletion can be done from only one end.
3. Priority Queue: A priority queue is a special queue where the elements are accessed based on the priority assigned to them. They are of two types:

• Ascending Priority Queue: In Ascending Priority Queue, the elements are arranged in increasing order of their priority values. Element with smallest priority value is popped first.
• Descending Priority Queue: In Descending Priority Queue, the elements are arranged in decreasing order of their priority values. Element with largest priority is popped first.


Implementing Stack

Stack Implementation Using Array

public class ArrayStack<T>
{
    private T[] _array;
    private int _topIndex;

    public ArrayStack(int capacity = 4)
    {
        _array = new T[capacity];
        _topIndex = -1;
    }

    public void Push(T item)
    {
        if (_topIndex == _array.Length - 1)
            Array.Resize(ref _array, _array.Length * 2);
        _array[++_topIndex] = item;
    }

    public T Pop()
    {
        if (IsEmpty()) throw new InvalidOperationException("Stack is empty.");
        return _array[_topIndex--];
    }

    public T Peek() => IsEmpty() ? throw new InvalidOperationException("Stack is empty.") : _array[_topIndex];

    public bool IsEmpty() => _topIndex == -1;
}

Stack Implementation Using Linked List

public class Node<T>
{
    public T Value;
    public Node<T> Next;
    public Node(T value) => Value = value;
}

public class LinkedListStack<T>
{
    private Node<T> _top;

    public void Push(T item)
    {
        var newNode = new Node<T>(item) { Next = _top };
        _top = newNode;
    }

    public T Pop()
    {
        if (_top == null) throw new InvalidOperationException("Stack is empty.");
        var value = _top.Value;
        _top = _top.Next;
        return value;
    }

    public T Peek() => _top == null ? throw new InvalidOperationException("Stack is empty.") : _top.Value;

    public bool IsEmpty() => _top == null;
}

Implementing Queue

Queue Implementation Using Array

public class ArrayQueue<T>
{
    private T[] _array;
    private int _front;
    private int _back;
    private int _count;

    public ArrayQueue(int capacity = 4)
    {
        _array = new T[capacity];
        _front = 0;
        _back = 0;
        _count = 0;
    }

    public void Enqueue(T item)
    {
        if (_count == _array.Length)
            Array.Resize(ref _array, _array.Length * 2);
        _array[_back % _array.Length] = item;
        _back++;
        _count++;
    }

    public T Dequeue()
    {
        if (IsEmpty()) throw new InvalidOperationException("Queue is empty.");
        var value = _array[_front % _array.Length];
        _front++;
        _count--;
        return value;
    }

    public T Peek() => IsEmpty() ? throw new InvalidOperationException("Queue is empty.") : _array[_front % _array.Length];

    public bool IsEmpty() => _count == 0;
}

Queue Implementation Using Linked List

public class LinkedListQueue<T>
{
    private Node<T> _front;
    private Node<T> _back;

    public void Enqueue(T item)
    {
        var newNode = new Node<T>(item);
        if (_back != null) _back.Next = newNode;
        _back = newNode;
        if (_front == null) _front = _back;
    }

    public T Dequeue()
    {
        if (_front == null) throw new InvalidOperationException("Queue is empty.");
        var value = _front.Value;
        _front = _front.Next;
        if (_front == null) _back = null;
        return value;
    }

    public T Peek() => _front == null ? throw new InvalidOperationException("Queue is empty.") : _front.Value;

    public bool IsEmpty() => _front == null;
}

Implementing Queue using Stacks

Use two stacks (inStack and outStack) to simulate FIFO behavior:

• inStack handles enqueue operations (Enqueue).
• outStack handles dequeue operations (Dequeue). When outStack is empty, pop all elements from inStack and push them into outStack to reverse the order.

  public class StackToQueue<T> {
      private Stack<T> _inStack;
      private Stack<T> _outStack;

      public StackToQueue() {
          _inStack = new Stack<T>();
          _outStack = new Stack<T>();
      }

      public void Enqueue(T item) {
          _inStack.Push(item);
      }

      public T Dequeue() {
          if (IsEmpty()) {
              throw new InvalidOperationException("Queue is empty");
          }
          MoveInToOut(); // Ensure outStack has elements
          return _outStack.Pop();
      }

      public T Peek() {
          if (IsEmpty()) {
              throw new InvalidOperationException("Queue is empty");
          }
          MoveInToOut();
          return _outStack.Peek();
      }

      private void MoveInToOut() {
          if (_outStack.Count == 0) {
              while (_inStack.Count > 0) {
                  _outStack.Push(_inStack.Pop());
              }
          }
      }

      public bool IsEmpty() => _inStack.Count + _outStack.Count == 0;
      public int Count => _inStack.Count + _outStack.Count;
  }

Implement Stack using just one Queue

public class MyStack {
    Queue<int> myQueue;
    public MyStack() {
        myQueue = new Queue<int>();
    }

    public void Push(int x) {
        myQueue.Enqueue(x);
    }

    public int Pop() {
        for (var i = 0; i < myQueue.Count-1; i++)
        {
            myQueue.Enqueue(myQueue.Dequeue());
        }
        return myQueue.Dequeue();
    }

    //reuse Pop()
    public int Top() {
        int res = Pop();
        myQueue.Enqueue(res);
        return res;
    }

    public bool Empty() {
        return (myQueue.Count == 0);
    }
}

Summary

Data Structure	Logical Characteristic	Typical Scenarios	Advantages of Array-base	Advantages of Linked List-based
Stack	LIFO	Expression evaluation, Undo operations	Fast access	No need for pre-allocation
Queue	FIFO	Task scheduling, Message queues	Continuous memory	Flexible dynamic resizing

Significance of Mutual Implementation

• Queue using Stacks: Understand the conversion between LIFO and FIFO, leveraging stack properties to simulate queue behavior.
• Stack using Queues: Deeply understand the underlying principles of data structures and master algorithm design in complex scenarios.
